Annotations

Annotations allow you to attach contextual information to accounts, assets, or sensors over specific time periods. They help document important events, holidays, alerts, maintenance windows, or any other information that adds context to your time series data.

What are annotations?

An annotation is a piece of metadata associated with a specific entity (account, asset, or sensor) during a defined time period. Each annotation includes:

Content: Descriptive text (up to 1024 characters)
Time range: Start and end times defining when the annotation applies
Type: Category of the annotation (label, holiday, alert, warning, error, or feedback)
Prior: Timestamp when the annotation was recorded
Source: The data source that created the annotation (typically a user or automated system)

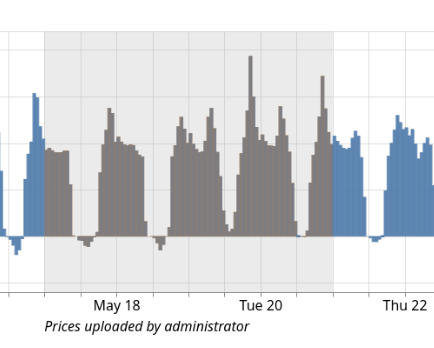

An annotation displayed on the sensor page

Use cases

Annotations are particularly useful for:

Forecasting and Scheduling: Holiday annotations help forecasting algorithms understand when energy consumption patterns deviate from normal patterns. FlexMeasures can automatically import public holidays using the flexmeasures add holidays command.
Data Quality Tracking: Mark periods with known sensor issues, data gaps, or quality problems using error or warning type annotations. This helps analysts understand why certain data points might be unreliable.
Operational Documentation: Document maintenance windows, system changes, or configuration updates with label type annotations. Record feedback about system behavior for future reference.
Alert Management: Create alert type annotations for active issues requiring attention. When resolved, the status changes and the annotation becomes part of the operational history.
Asset Context: Mark special events at the asset level (e.g., building renovations, equipment upgrades). These annotations appear in all related sensor charts for that asset.

Annotation types

FlexMeasures supports six annotation types:

label: General-purpose annotations for documentation and notes. Default type if not specified.
holiday: Public or organizational holidays that may affect energy patterns. Used by forecasting algorithms.
alert: Active warnings requiring attention or action.
warning: Informational warnings about potential issues or degraded conditions.
error: Markers for periods with data quality issues, sensor failures, or system errors.
feedback: User feedback or observations about system behavior or data.

Creating annotations via API

The annotation API provides three POST endpoints:

POST /api/v3_0/accounts/<id>/annotations - Annotate an account
POST /api/v3_0/assets/<id>/annotations - Annotate an asset
POST /api/v3_0/sensors/<id>/annotations - Annotate a sensor

Authentication

All annotation endpoints require authentication. Include your access token in the request header:

{
    "Authorization": "<your-access-token>"
}

See Authentication for details on obtaining an access token.

Permissions

You need create-children permission on the target entity (account, asset, or sensor) to create annotations. The permission system ensures users can only annotate resources they have access to.

See Authorization for more details on FlexMeasures authorization.

Request Format

All annotation endpoints accept the same request body format:

{
    "content": "Sensor maintenance performed",
    "start": "2024-12-15T09:00:00+01:00",
    "end": "2024-12-15T11:00:00+01:00",
    "type": "label",
    "prior": "2024-12-15T08:45:00+01:00"
}

Required fields:

content (string): Description of the annotation. Maximum 1024 characters.
start (ISO 8601 datetime): When the annotated period begins. Must include timezone.
end (ISO 8601 datetime): When the annotated period ends. Must be after start. Must include timezone.

Optional fields:

type (string): One of "alert", "holiday", "label", "feedback", "warning", "error". Defaults to "label".
prior (ISO 8601 datetime): When the annotation was recorded. Defaults to current time if omitted.

Response Format

Successful requests return the created annotation:

{
    "id": 123,
    "content": "Sensor maintenance performed",
    "start": "2024-12-15T09:00:00+01:00",
    "end": "2024-12-15T11:00:00+01:00",
    "type": "label",
    "prior": "2024-12-15T08:45:00+01:00",
    "source": 42
}

The source identifies the data source that created the annotation (typically corresponds to the authenticated user).

Status Codes

201 Created: A new annotation was created
200 OK: An identical annotation already exists (idempotent behavior)
400 Bad Request: Invalid request data (e.g., end before start, missing required fields)
401 Unauthorized: Missing or invalid authentication token
403 Forbidden: User lacks permission to annotate this entity
404 Not Found: The specified account, asset, or sensor does not exist
422 Unprocessable Entity: Request data fails validation
500 Internal Server Error: Server error during annotation creation

Examples

Example 1: Mark a holiday on an asset

curl -X POST "https://company.flexmeasures.io/api/v3_0/assets/5/annotations" \
  -H "Authorization: YOUR_TOKEN_HERE" \
  -H "Content-Type: application/json" \
  -d '{
    "content": "Christmas Day - reduced operations",
    "start": "2024-12-25T00:00:00+01:00",
    "end": "2024-12-26T00:00:00+01:00",
    "type": "holiday"
  }'

Response:

{
    "id": 456,
    "content": "Christmas Day - reduced operations",
    "start": "2024-12-25T00:00:00+01:00",
    "end": "2024-12-26T00:00:00+01:00",
    "type": "holiday",
    "prior": "2024-12-15T10:30:00+01:00",
    "source": 12
}

Status: 201 Created

Example 2: Document a sensor error

curl -X POST "https://company.flexmeasures.io/api/v3_0/sensors/42/annotations" \
  -H "Authorization: YOUR_TOKEN_HERE" \
  -H "Content-Type: application/json" \
  -d '{
    "content": "Temperature sensor malfunction - readings unreliable",
    "start": "2024-12-10T14:30:00+01:00",
    "end": "2024-12-10T16:45:00+01:00",
    "type": "error"
  }'

Response:

{
    "id": 457,
    "content": "Temperature sensor malfunction - readings unreliable",
    "start": "2024-12-10T14:30:00+01:00",
    "end": "2024-12-10T16:45:00+01:00",
    "type": "error",
    "prior": "2024-12-15T10:35:00+01:00",
    "source": 12
}

Status: 201 Created

Example 3: Python client example

import requests
from datetime import datetime, timezone, timedelta

# Configuration
FLEXMEASURES_URL = "https://company.flexmeasures.io"
ACCESS_TOKEN = "your-access-token-here"

# Create annotation for an account
annotation_data = {
    "content": "Office closed for renovation",
    "start": "2025-01-15T00:00:00+01:00",
    "end": "2025-01-22T00:00:00+01:00",
    "type": "label"
}

response = requests.post(
    f"{FLEXMEASURES_URL}/api/v3_0/accounts/3/annotations",
    headers={
        "Authorization": ACCESS_TOKEN,
        "Content-Type": "application/json"
    },
    json=annotation_data
)

if response.status_code in (200, 201):
    annotation = response.json()
    print(f"Annotation created with ID: {annotation['id']}")
    if response.status_code == 200:
        print("(Annotation already existed)")
else:
    print(f"Error: {response.status_code}")
    print(response.json())

Example 4: Using Python helper function

from datetime import datetime, timedelta, timezone
import requests

def create_annotation(entity_type, entity_id, content, start, end,
                     annotation_type="label", prior=None,
                     base_url="https://company.flexmeasures.io",
                     token=None):
    """Create an annotation via the FlexMeasures API.

    :param entity_type:     One of "accounts", "assets", "sensors"
    :param entity_id:       ID of the entity to annotate
    :param content:         Annotation text (max 1024 chars)
    :param start:           Start datetime (ISO 8601 string or datetime object)
    :param end:             End datetime (ISO 8601 string or datetime object)
    :param annotation_type: Type of annotation (default: "label")
    :param prior:           Optional recording time (ISO 8601 string or datetime object)
    :param base_url:        FlexMeasures instance URL
    :param token:           API access token
    :return:                Response JSON and status code tuple
    """
    # Convert datetime objects to ISO 8601 strings if needed
    if isinstance(start, datetime):
        start = start.isoformat()
    if isinstance(end, datetime):
        end = end.isoformat()
    if isinstance(prior, datetime):
        prior = prior.isoformat()

    url = f"{base_url}/api/v3_0/{entity_type}/{entity_id}/annotations"

    payload = {
        "content": content,
        "start": start,
        "end": end,
        "type": annotation_type
    }

    if prior:
        payload["prior"] = prior

    headers = {
        "Authorization": token,
        "Content-Type": "application/json"
    }

    response = requests.post(url, headers=headers, json=payload)
    return response.json(), response.status_code

# Example usage
now = datetime.now(timezone.utc)
result, status = create_annotation(
    entity_type="sensors",
    entity_id=123,
    content="Scheduled maintenance",
    start=now + timedelta(hours=2),
    end=now + timedelta(hours=4),
    annotation_type="label",
    token="your-token-here"
)

print(f"Status: {status}")
print(f"Annotation ID: {result.get('id')}")

Idempotency

The annotation API is idempotent. If you POST the same annotation data twice (same content, start time, recording time, source, and type), the API will:

On first request: Create the annotation and return 201 Created
On subsequent identical requests: Return the existing annotation with 200 OK

This idempotency is based on a database uniqueness constraint on (content, start, prior, source, type).

Why is this useful?

Safe to retry failed requests without creating duplicates
Simplifies client code (no need to check if annotation exists first)
Automated systems can safely re-run annotation creation scripts

Note: Annotations with the same content but different end times are considered different annotations. The end field is not part of the uniqueness constraint.

Creating annotations via CLI

FlexMeasures provides CLI commands for creating annotations:

General annotation command:

flexmeasures add annotation \
  --content "Maintenance window" \
  --start "2024-12-20T10:00:00+01:00" \
  --end "2024-12-20T12:00:00+01:00" \
  --type label \
  --account-id 1

You can target accounts, assets, or sensors:

# Annotate a specific sensor
flexmeasures add annotation --sensor-id 42 --content "..." --start "..." --end "..."

# Annotate a specific asset
flexmeasures add annotation --asset-id 5 --content "..." --start "..." --end "..."

# Annotate an account
flexmeasures add annotation --account-id 1 --content "..." --start "..." --end "..."

Holiday import command:

FlexMeasures can automatically import public holidays using the workalendar library:

# Add holidays for a specific account
flexmeasures add holidays --account-id 1 --year 2025 --country NL

# Add holidays for an asset
flexmeasures add holidays --asset-id 5 --year 2025 --country DE

See flexmeasures add holidays --help for available countries and options.

Viewing annotations

In the FlexMeasures UI:

Annotations appear automatically in:

Sensor charts: Individual sensor data views show all annotations linked to that sensor and its asset
Not yet in asset charts: these might show all annotations linked to that asset, its parent assets, and its account

Annotations are displayed as vertical bands, with their text contents displayed on hover (select to keep it visible).

Via API queries:

When fetching sensor data through chart endpoints, you can control which annotations are included:

GET /api/dev/sensor/42/chart?include_sensor_annotations=true&include_asset_annotations=true&include_account_annotations=true

This allows you to:

Include only sensor-specific annotations
Add broader context from asset and account annotations
Customize which annotation layers are visible

See Developer API for complete API documentation for sensor charts.
